■ parameter [ IF-160FE / IF-200FE]

ink cup steel plate

75x500mm

100x600mm

SPEED（hr）

600p

 printing area

60x280mm

75x330mm

 inkcup diameter(mm)

60mm

86mm/90mm

Cylinder stroke(mm)

shuttle Special cylinder

shuttle Special cylinder

Cylinder stroke (Before to after)

160mm

200mm

Cylinder stroke(up to down)

80mm

100mm

MACHINE SIZE LXWXH（mm）

780x820x1400mm

890x960x1450mm

WEIGHT

120kg

180kg

Air pressure（bar）

6Bar

6Bar

POWER

110v or 220v

 60/50Hz 20w

110v or 220v

 60/50Hz 20w

■COMMENT:

     [1].This machine adopts thick cast aluminum casting, So that provides the machine long-termand stable operation of the platform  to ensure.The machine structure and layout  introduced Germany printing machine design, layout  reasonable, beautiful and generous.the For example,Germany tampo pad printer.And In accordance with years of our Industry experience,Get good improvement for it.

      [2].   Main power component of this pad printer using pneumatic components of FESTO from German, So that it provided IF printer guarantee of stable and long-term work.. Its accessory is made by  the High strength, high quality aluminum, so that lasting and accuracy use become reality.

     [3].The machine shell using high-quality paint coating, anti most of chemical solvents, so that clean the dirt is easy.

     [4]. MCU computer program control for the inter,Manipulation program is simple and practical, very easy to use for user.The form of thin-film switch control panel, so it is high-grade and Operation of sensitive,Convenient to replace .

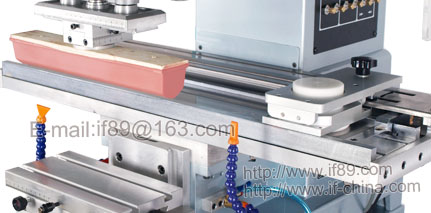

    [5].The above picture is ink cup struction system, So save ink  for you.


    [6]. The machine adopts  the upper and lower and angle Adjustable  workbench .very convenient printing position adjustment.It  is suitable for the printing of long and narrow product,example: ruler.

   [7].The pad printer with printing head cleaning automatic unit and hot air drying unit (optional according to the actual work requirements).
